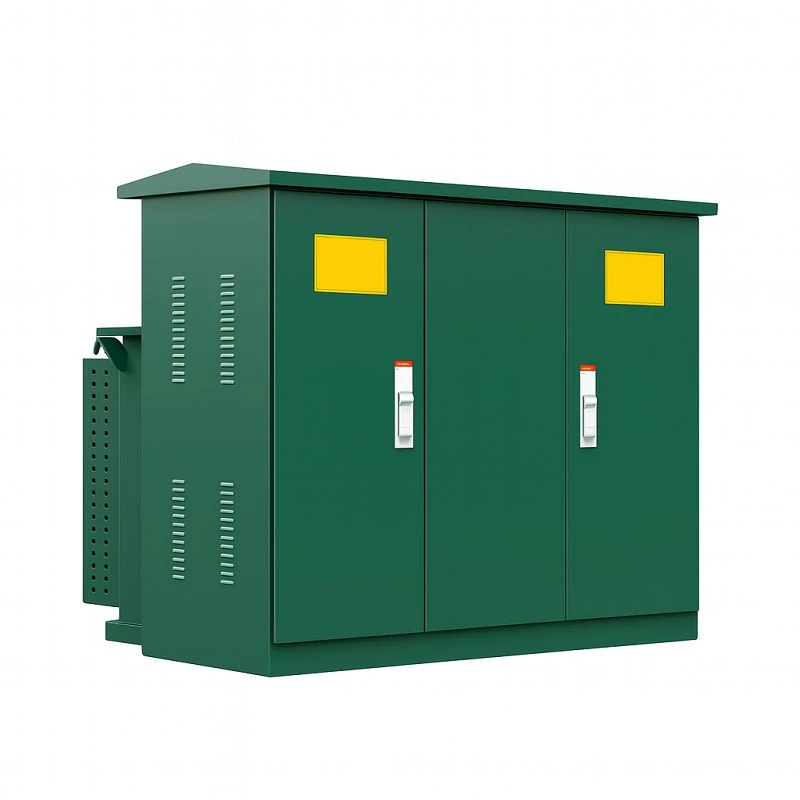

1500 KVA Pad Mount Three-Phase Oil-Immersed Distribution Transformer

The1500 kVA Pad Mounted Transformere sebetsa e le setsi se bohareng bakeng sa-meaho e meholo. Leha e le ea bohlokoa 'meleng, e entsoe ka-khabinete ea boemo bo tlase ho tsoakana le ponahalo ea naha ea{3}}matlotlo a holimo.

Yuniti ena e hlalosa bocha sehlopha sasebaka sa bolulo mounted transformer. Ho fapana le makotikoti a manyane a 25 kVA a fumanehang ka har'a jarete ea toropo, senatla sena sa 1.5 MVA se etselitsoe "Vertical Neighborhoods"-high-litora tse phahameng tsa condominium kapa lifolete tse kholo. Yuniti e le 'ngoe e ka matlafatsa meaho e fetang 100 ea bolulo (ho nka hore ho jara mefuta e fapaneng), ho nkela tlhokahalo ea libanka tsa li-transformer tse nyane le ho nolofatsa marang-rang a marang-rang a ka tlas'a lefatše.

Phephetso ea boenjiniere ho 1500 kVA ha se feela ho fetola motlakase, empa ho felisa 'mele oa hona joale. Ka 480V, yuniti ena e fana ka hoo e ka bang1804 Amps. Ho jara mojaro ona, li-installer hangata li hloka ho theola li-run tse 6 ho isa ho tse 8 tsa likhoele tse 500 tsa MCM kapa tse 750 tsa MCM mohato ka mong.

Ho amohela "Sea of ​​Cables" ena, karolo ea Low Voltage e na le aTokiso ea Spade e tsitsitseng.

• Geometry:Litheminale tsa likharafu tsa NEMA (li-paddles) tsa Mokhahlelo oa A, oa B, le oa C ha lia tsamaellana ka sefofane se sephara. Ho e-na le hoo, ba fokotsehile ka botebo.
• Molemo:Sebaka sena sa marang-rang se fana ka li-installers ka mokhoa o hlakileng oa ho hlakola li-wrench. E lumella hore liboutu li tokisoe ka morao lithapong tse ka morao ntle le ho thijoa ke lithapo tse ka pele, ho etsa bonnete ba hore ho na le khokahanyo e sireletsehileng-e thibelang "libaka tse chesang" hore li se ke tsa thella.

Liteishene tsa spade tsa NEMA tse tsitsitseng ka phaposing ea motlakase e tlase bakeng sa

ho hokela mehala e mengata e boima.

Ho beha thepa ena hantle ho hloka ho nepahala. Ha likonteraka li itokisetsa hothaba ea transformerlikarolo tsa boima bona (hoo e ka bang{0}},500 kg), letlapa la konkreite le tlameha ho matlafatsoa.

• Ho tsamaisana ha lifensetere:Sekoti se ka tlase se entsoe ka 'metso o moholo, o bulehileng oa khutlonnetsepa. Re fana ka lits'oants'o tse nepahetseng ho etsa bonnete ba hore liphaephe tsa mantlha le tsa bobeli li hokahana hantle le liliba tsa mahlahahlaha, ho thibela khatello ea maikutlo nakong ea ho qetela{1}}ka tlase.
• Sill Integrity:Litšepe tsa motheo li hahiloe ka tšepe ea sebopeho sa C-, e koahetsoeng ka mashala-tar epoxy kapa undercoating ho thibela kutu moo tšepe e kopanang le bokaholimo bo mongobo bo ka bang mongobo.

• Li-Condos tse{0}Holimo:E lutse botlaaseng ba tora ea bolulo ea mekato e 30, e theohang 13.8kV ho isa ho 480V bakeng sa kotopo ea libese ea moaho.
• Lintlafatso Tse Kopanetsoeng-Sebelisa:Ho matlafatsa motse-moholo o kopanyang-mabenkele a fatše le lifolete tse ka holimo{1}}.
• Likamore tsa Univesithi:Sebaka se le seng sa motlakase se bohareng bakeng sa khamphase e kholo ea matlo a baithuti.

1500 kVA pad mounted transformer e matlafatsang-bolulo bo phahameng

tora ea condominium.
